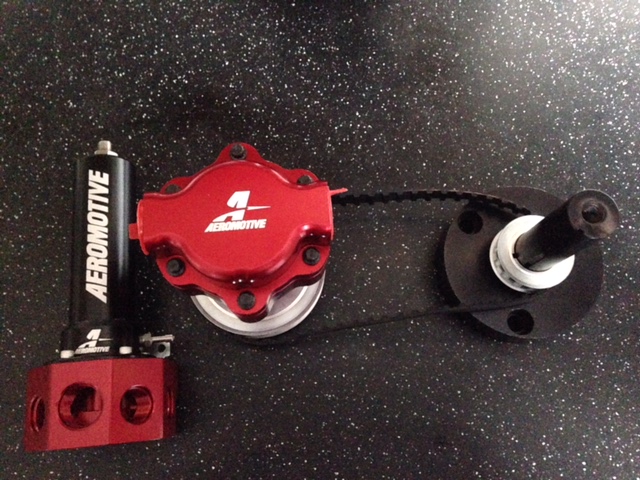

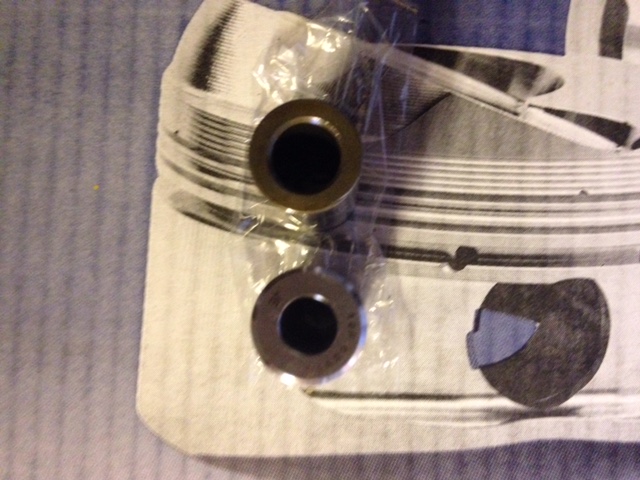

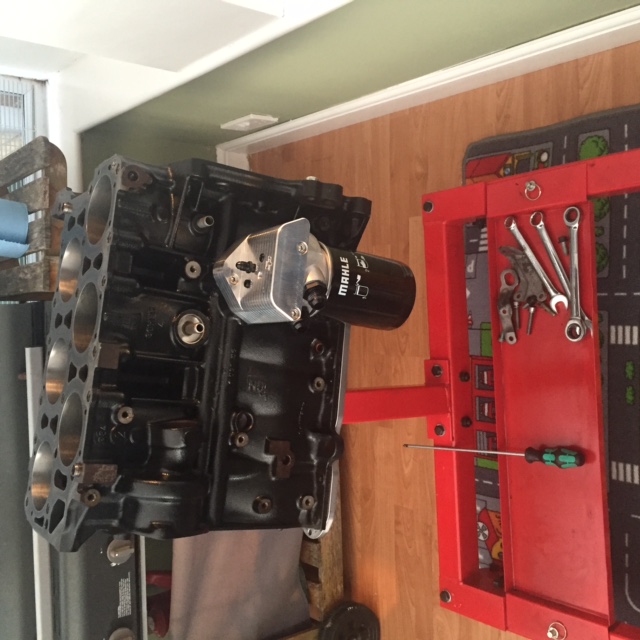

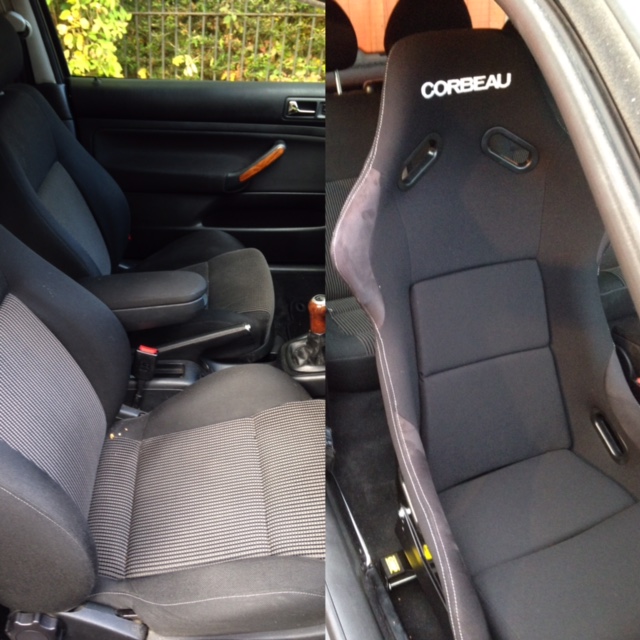

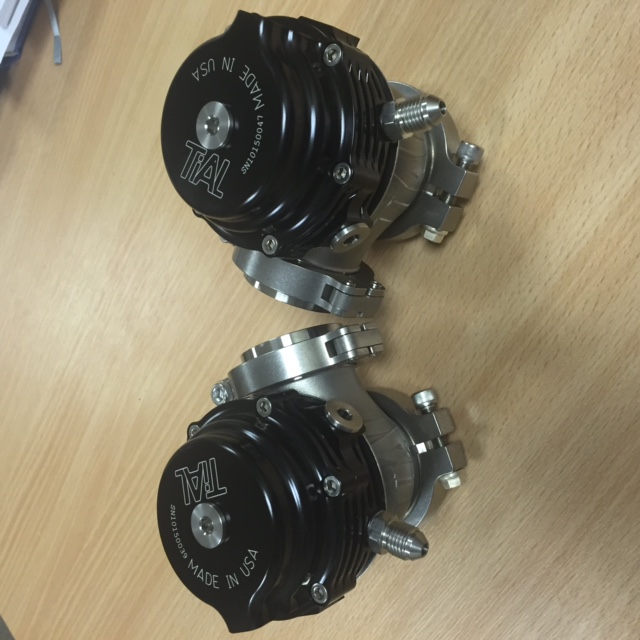

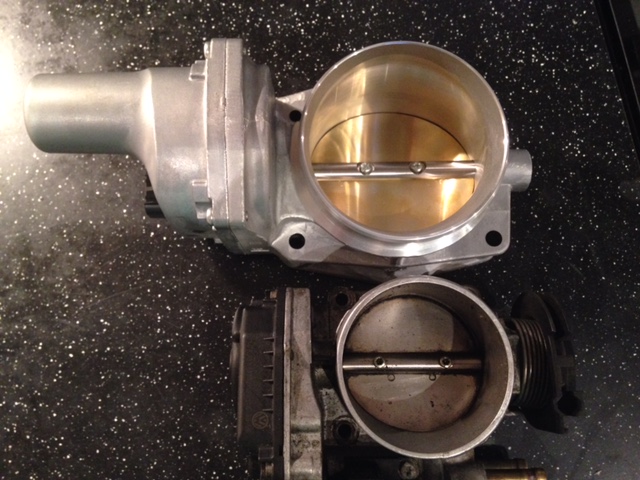

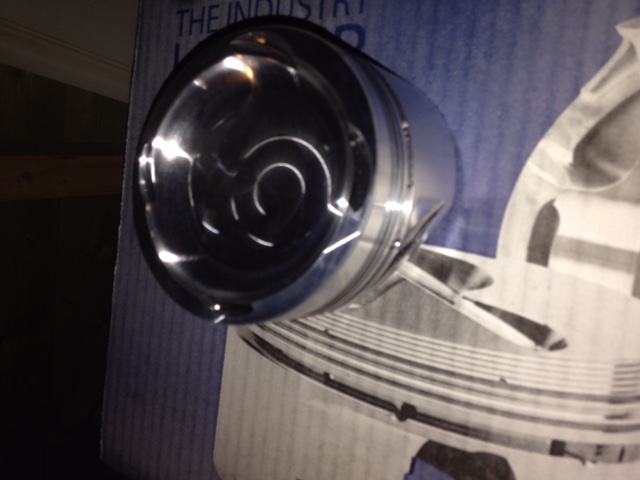

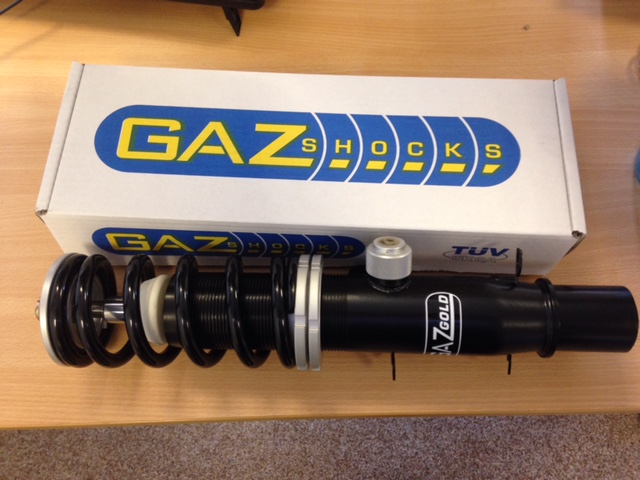

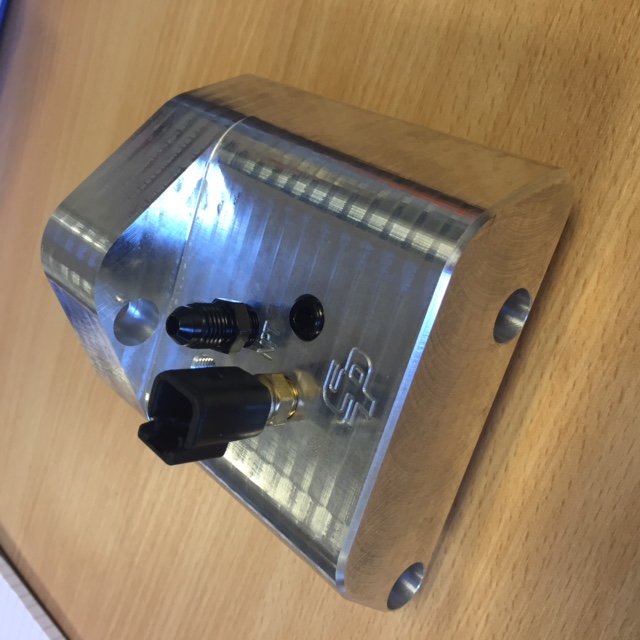

matty.vrt 120 Posted May 23, 2016 Report Share Posted May 23, 2016 Hi all, I have been a member on here now for over 8 years now. I have learned lots from different members on here, from my first supercharger build to my last turbo build this site has been an invaluable source of information. My intention has always been to write a build thread to help inspire others as I have been inspired from reading many build threads on here. Anyway here is my project car. Its a 2000 W reg 2.8 24v 4 motion with 18x8J Team Dynamics Pro Race 1.2's With plans for big power in the future I decided to upgrade the seats to save weight and help hold me in on the twisties. Next up was coilovers. This time I decided that I wanted the car to handle as well as look good so I went for Gaz Gold height, damper and rebound adjustable. And now for the turbo parts. JE 8.5:1 .5 oversized pistons Tool steel piston pins Garrett GTX4202R with 1.15 T4 divided (twin scroll) housing and 4" v band discharge Twin Tial MVS wastegates Aeromotive belt dirve fuel pump. Good for 1800bhp on methanol Sp turbo oil filter housing ready to run air/oil cooler and ensures clean oil supply to the turbo Corvette Z06 90mm DBW throttle body against stock vr6 12v item Crank girdle to help hold it all together. The engine is now fully built so I will add the build photo's shortly. Bealieboy, c00k, DonLotto and 2 others 5 Link to post Share on other sites

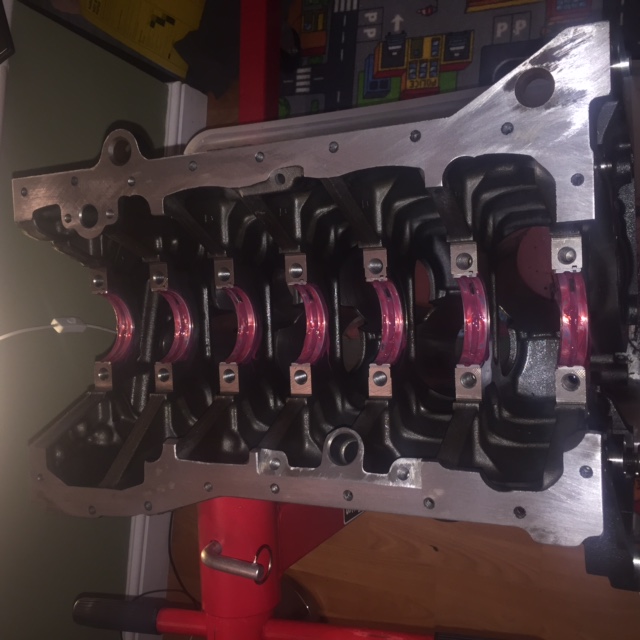

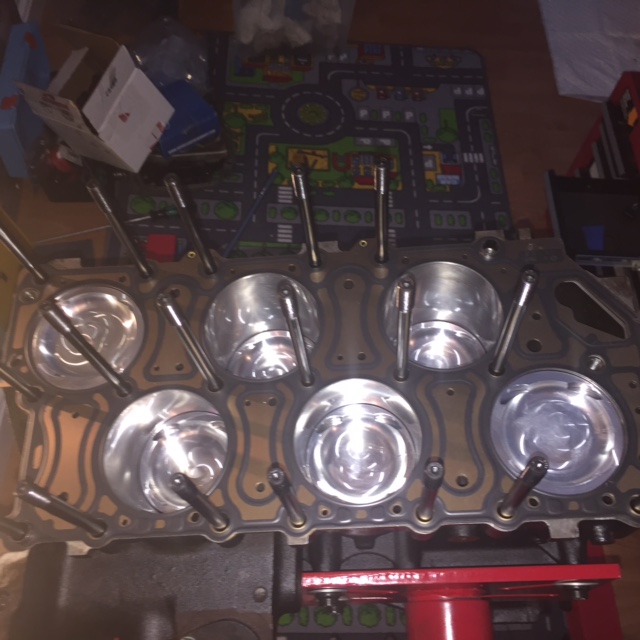

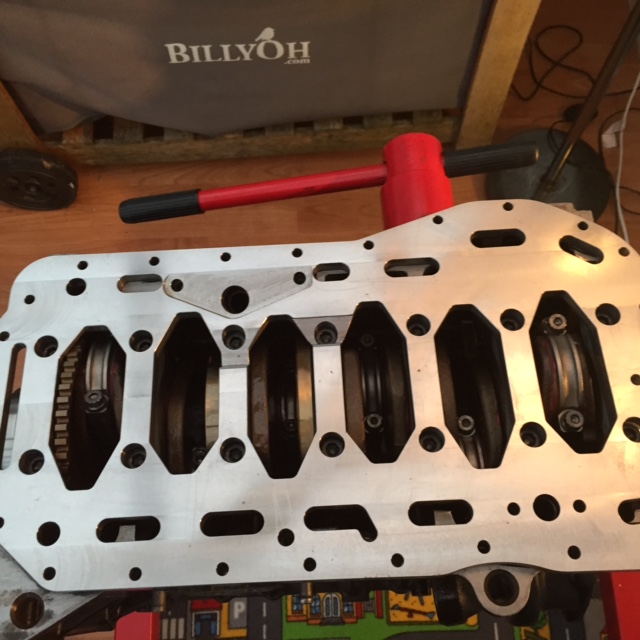

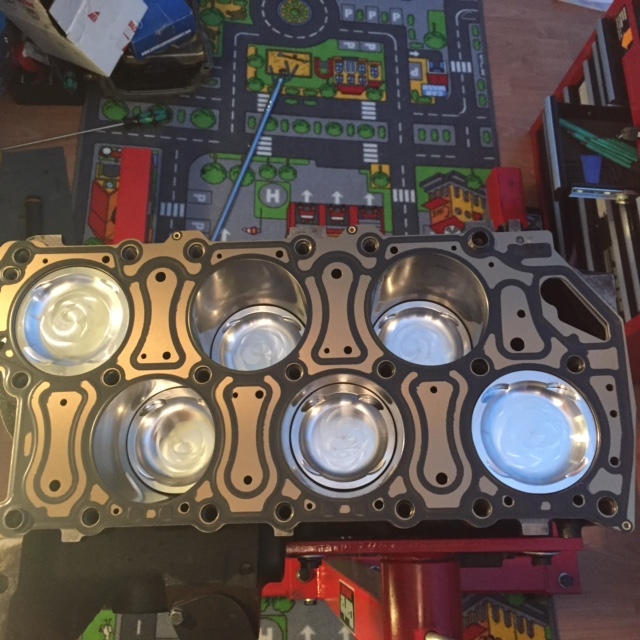

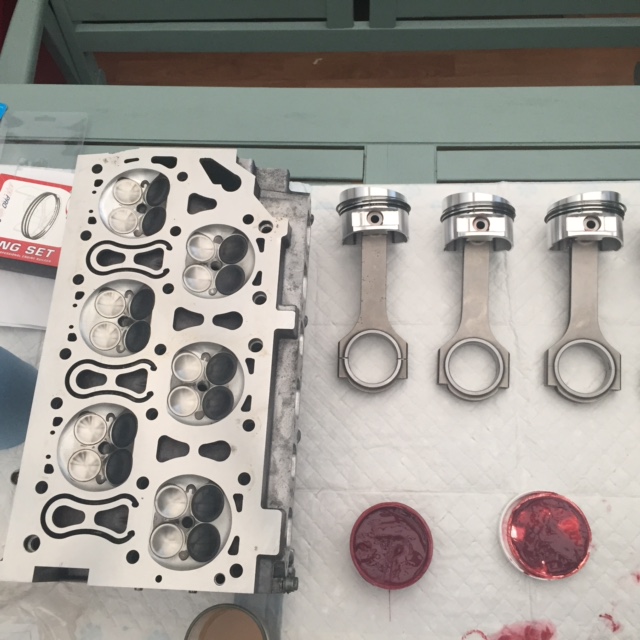

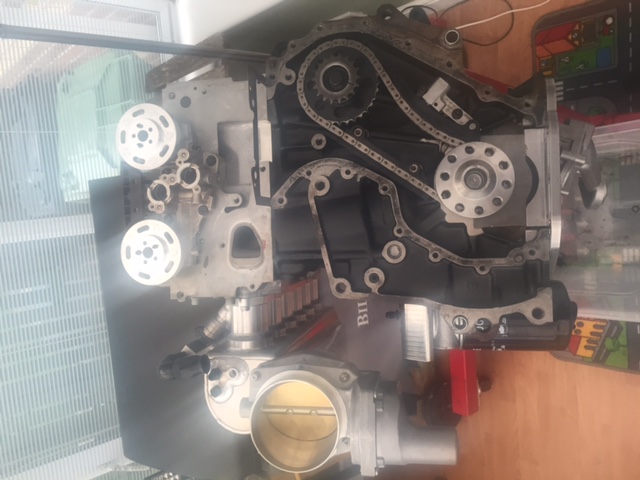

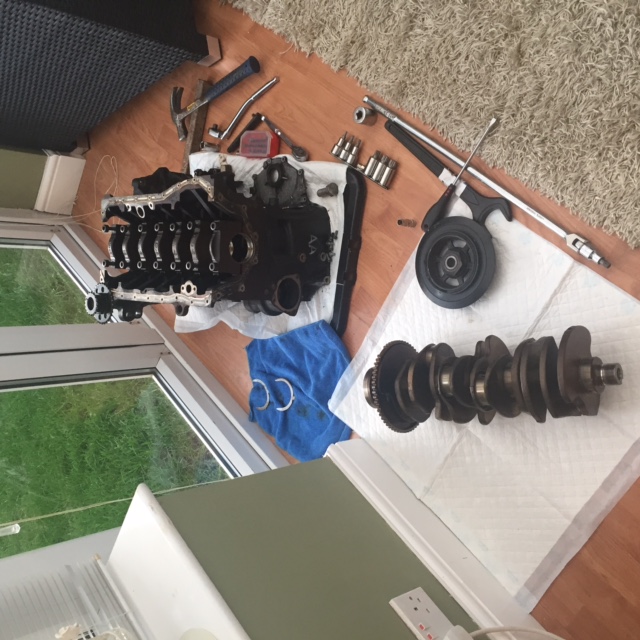

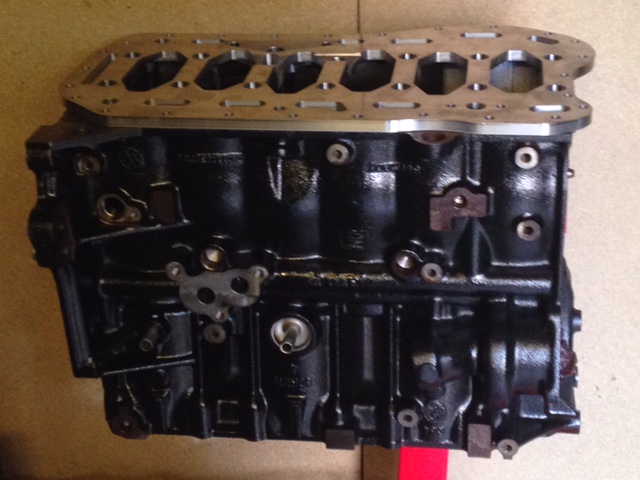

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 (edited) I then sourced a Golf mk4 R32 engine block as the mk5 BUB engine im using has a cast crank that will not cope with the planned power output. The BUB block was then sent off to be honed from 84mm to 84.5 as cylinder no 3 had a score mark from detonation in its past supercharged life, despite only having done 34,000 miles. I then test fitted the crank girdle, only to find that it would not sit level due to a bit of exess casting on one of the main caps The cap was soon ground down and we where back in business. VW R36 main bearing arrived not the most exiting component but vital never less. Head arrived back from NG Motorsports having been CNC ported and fitted with Supertech valves and springs As Christmas came it was time to separate the forged crank from the mk4 block. Obviously the conservatory was the only sensible place for this. BUB block was prepared for the crank. Crank, girdle and Spturbo stage 2 rods were then fitted. Many cups of coffee later the head was ready to go on. Even the combustion chambers have been CNC'd to ensure the highly pressurised charge combusts properly. Nice new head gasket fitted. ARP2000 10mm head bolts fitted. Head and block finally married. Then the engine was timed using VVT Delete SPturbo adjustable cam pulley's. Edited May 24, 2016 by matty.vrt Bealieboy and VR6 Supercharged 2 Link to post Share on other sites
Bealieboy 1,625 Posted May 24, 2016 Report Share Posted May 24, 2016 Tell us more, tell us more!!!!! matty.vrt and JakeP 2 Link to post Share on other sites

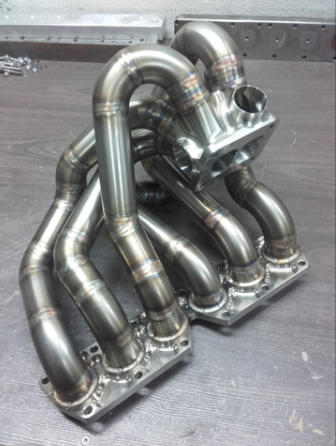

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Turbo manifold construction in progress. VR6 Supercharged, D1BBZ, Neil20vtc and 2 others 5 Link to post Share on other sites
c00k 435 Posted May 24, 2016 Report Share Posted May 24, 2016 This looks like it going to be an amazing build! Keep it up buddy! matty.vrt 1 Link to post Share on other sites
matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 20 minutes ago, c00k said: This looks like it going to be an amazing build! Keep it up buddy! Thanks for the encouragement, it has taken over a year just to get to this point. Hopefully it will start coming together soon. rich 1 Link to post Share on other sites
matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Downpipe mid construction. Turbo exit is 4" v band into 2x 3" down pipes which with a little man maths I estimate to flow as well as a single 5". VR6Pete, c00k and VR6 Supercharged 3 Link to post Share on other sites
rich 40 Posted May 24, 2016 Report Share Posted May 24, 2016 boy oh boy..im looking forward to this buddy. Top build.ya jammy sod..very sweet matty.vrt 1 Link to post Share on other sites

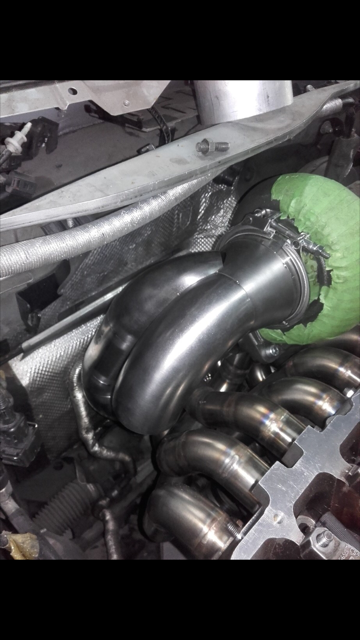

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Down pipe and manifold complete. JakeP, rich and thesurgeon 3 Link to post Share on other sites

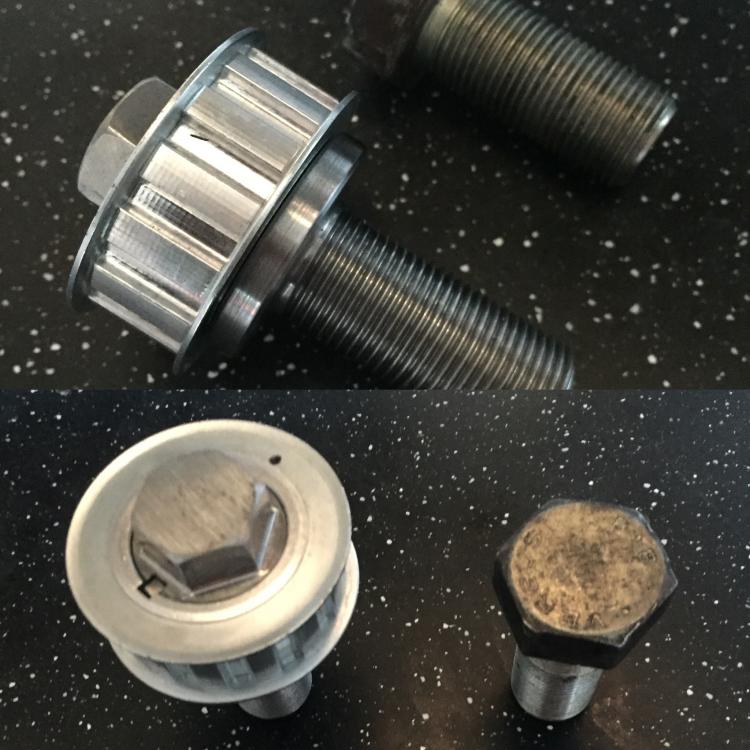

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Then had a special bolt machined to mount the drive pulley for the fuel pump. Link to post Share on other sites

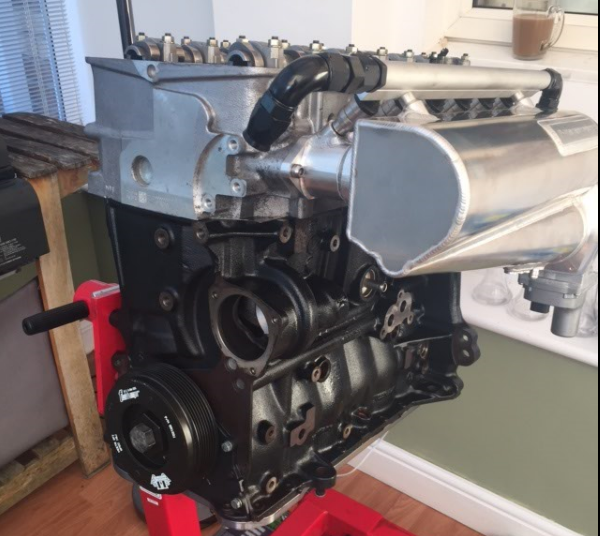

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Injectors bungs made for stock injectors holes as 1200cc precision injectors had to be mounted in the manifold as too big for the head. rich 1 Link to post Share on other sites

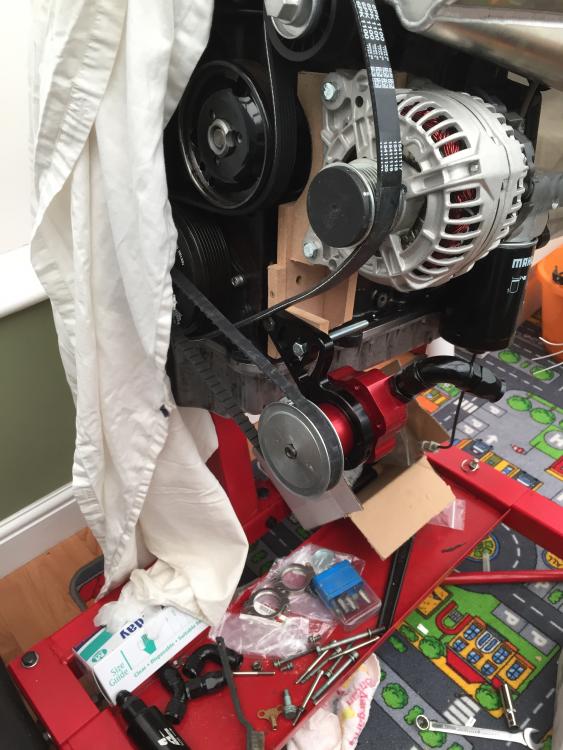

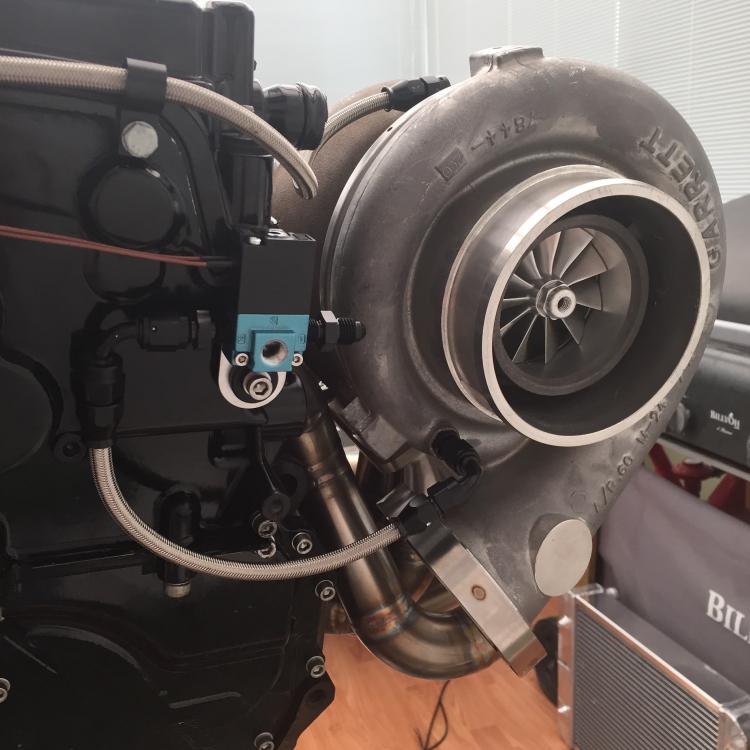

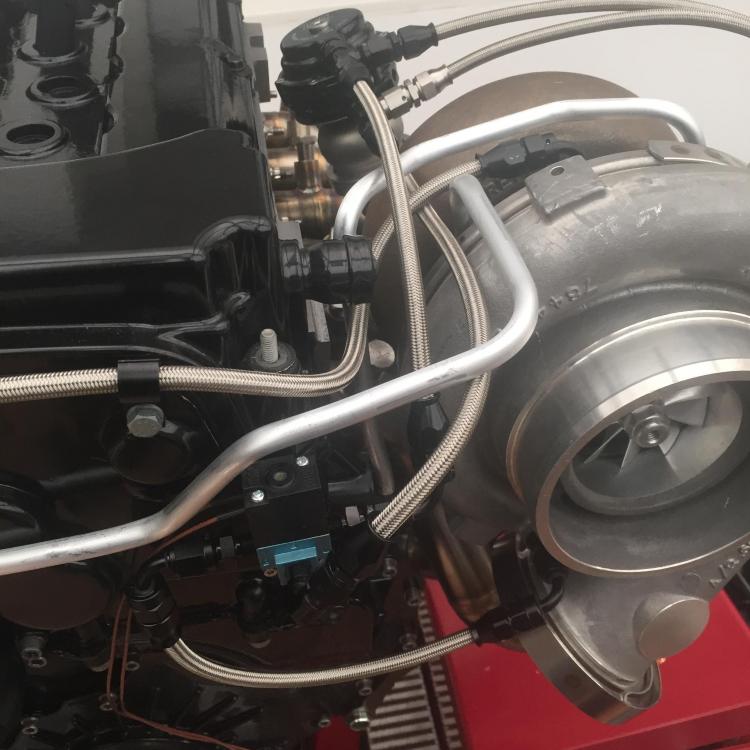

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Boost solenoid mounted. Water feed to turbo plumbed. vacum pipes finished, looks like spaghetti junction now. Wooden fuel pump and alternator bracket made just need to have it made in metal now. Link to post Share on other sites

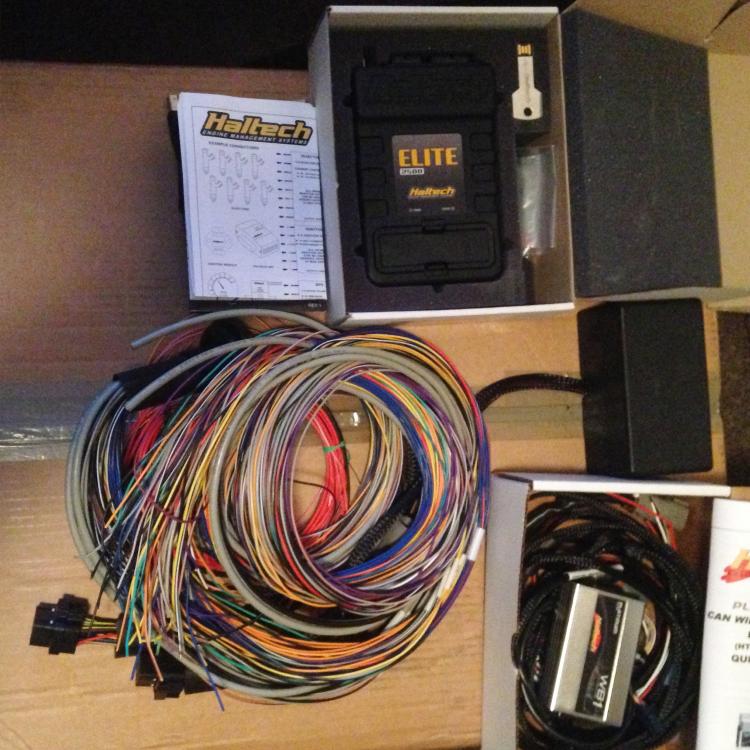

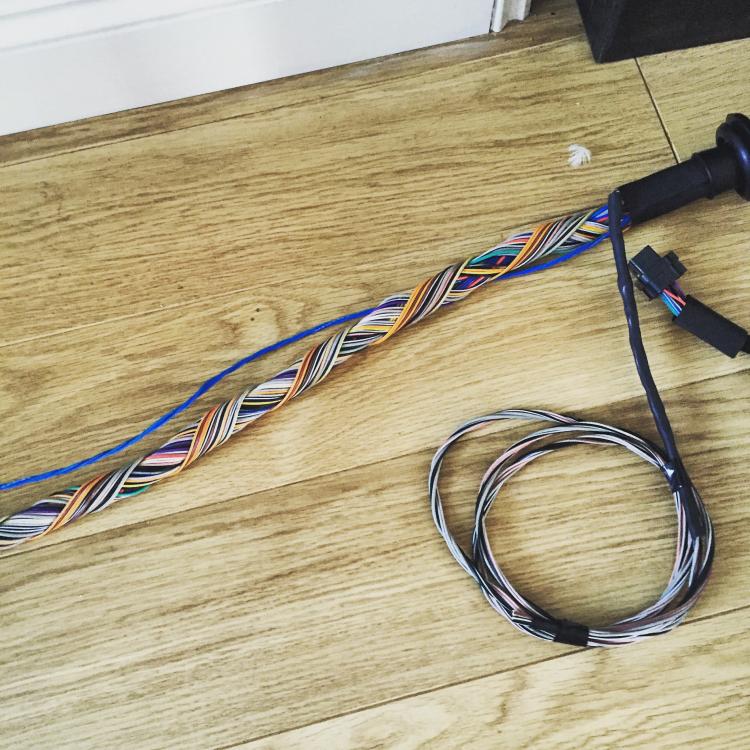

matty.vrt 120 Posted May 24, 2016 Author Report Share Posted May 24, 2016 Time to start wiring this lot together. After hours and hours starting to make sense of it. This is my version of a millspec consentric twist. VR6Pete, Neil20vtc, c00k and 3 others 6 Link to post Share on other sites
c00k 435 Posted May 25, 2016 Report Share Posted May 25, 2016 Guess your running it on flex fuel? E85 + petrol, as your running a haltech. Link to post Share on other sites

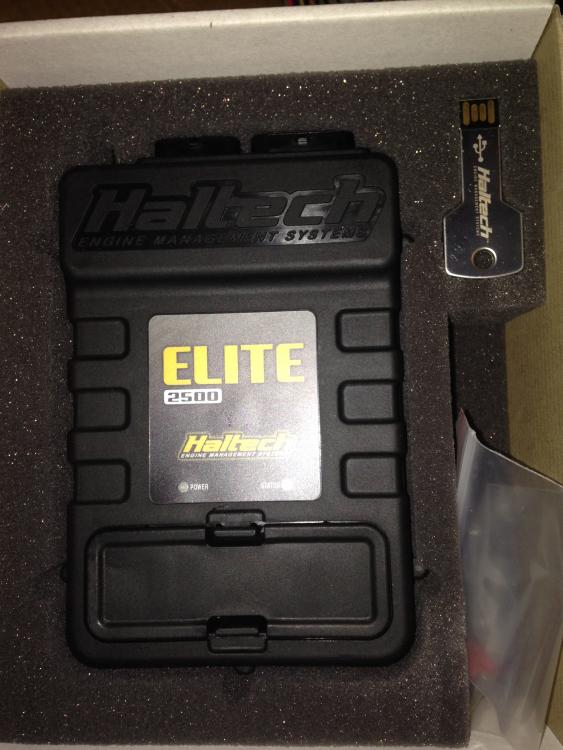

matty.vrt 120 Posted May 25, 2016 Author Report Share Posted May 25, 2016 Running Haltech as it is feature rich and user friendly. I plan on wiring and mapping the whole thing my self and felt Haltech offers the best customer support around. There is no use for flex fuel in our country as E85 is not available at the pumps, so contestant E85/ C85 from VP on Sunoco is the only option, rendering flex fuel pointless. I plan on having multiple maps for pump fuel, C85 and Q16. Link to post Share on other sites
matty.vrt 120 Posted May 25, 2016 Author Report Share Posted May 25, 2016 Eventually I will have egt sensors on each cylinder to monitor temps as I add nitrous. This is a simple addition through the CAN system. Link to post Share on other sites
rich 40 Posted May 25, 2016 Report Share Posted May 25, 2016 corrrr..fukin nitros..whoo..this is gunna fly..top respect bud matty.vrt 1 Link to post Share on other sites
c00k 435 Posted May 25, 2016 Report Share Posted May 25, 2016 (edited) 4 hours ago, matty.vrt said: Running Haltech as it is feature rich and user friendly. I plan on wiring and mapping the whole thing my self and felt Haltech offers the best customer support around. There is no use for flex fuel in our country as E85 is not available at the pumps, so contestant E85/ C85 from VP on Sunoco is the only option, rendering flex fuel pointless. I plan on having multiple maps for pump fuel, C85 and Q16. There is E85 in Wales near me! Has been for good few years. You can get it in any morrisons station in Wales I think, and I know a few guys who already run flex fuel sensors. Maybe not in England, but there is in Wales. As I looked in to haltech for my supercharged one, and running it on E85 as I can get it from a petrol station 10mins from my house, and I was going to run flex fuel sensor, I may still go this route in the future. Plus yes it does have a lot of features, and all the bells and whistles. To prove it look at link below: http://www.walesonline.co.uk/news/wales-news/biopetrol-goes-sale-wales-2301160 Edited May 25, 2016 by c00k Link to post Share on other sites
matty.vrt 120 Posted May 25, 2016 Author Report Share Posted May 25, 2016 2 hours ago, c00k said: There is E85 in Wales near me! Has been for good few years. You can get it in any morrisons station in Wales I think, and I know a few guys who already run flex fuel sensors. Maybe not in England, but there is in Wales. As I looked in to haltech for my supercharged one, and running it on E85 as I can get it from a petrol station 10mins from my house, and I was going to run flex fuel sensor, I may still go this route in the future. Plus yes it does have a lot of features, and all the bells and whistles. To prove it look at link below: http://www.walesonline.co.uk/news/wales-news/biopetrol-goes-sale-wales-2301160 Well, you have me well jealous there. The prices of VP & Sunoco E85 are ridiculous. Link to post Share on other sites
palmer 17 Posted May 25, 2016 Report Share Posted May 25, 2016 Engine build is ridiculous Gonna be sick when its done dude. matty.vrt 1 Link to post Share on other sites
matty.vrt 120 Posted May 25, 2016 Author Report Share Posted May 25, 2016 13 minutes ago, palmer said: Engine build is ridiculous Gonna be sick when its done dude. Thank you. Definitely looking forward to when! rich 1 Link to post Share on other sites

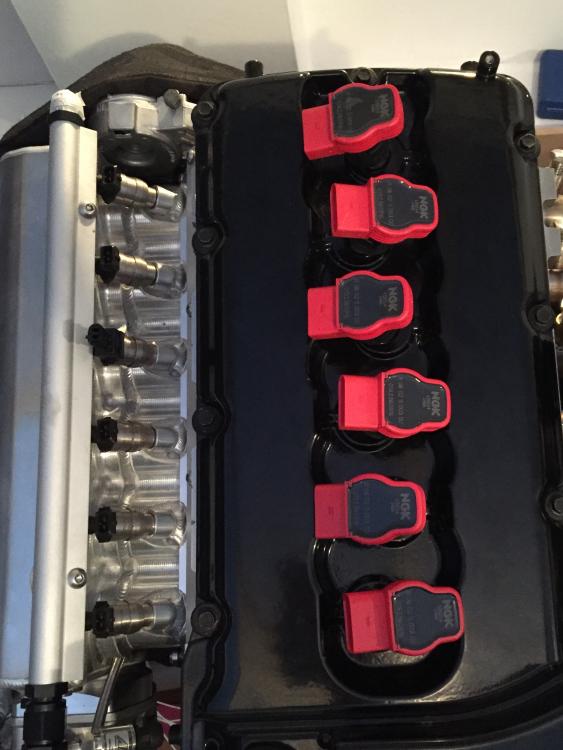

matty.vrt 120 Posted May 27, 2016 Author Report Share Posted May 27, 2016 New coils arrived today. Went for genuine NGK R8 coils in the end. Some people say they produce a stronger spark which will come in handy when I turn up the boost. I just like the look of them if I'm honest.? D11PS, palmer and rich 3 Link to post Share on other sites
ssaunders 199 Posted May 28, 2016 Report Share Posted May 28, 2016 Thanks for the gratuitous engine porn! what you doing gearbox wise? I have read the 32 box can be a little weak when running big power. good luck steve matty.vrt 1 Link to post Share on other sites
VR6CABBS 1,311 Posted May 28, 2016 Report Share Posted May 28, 2016 Awesome build thread. Your gonna need a runway to launch this when its finished mate. ha matty.vrt 1 Link to post Share on other sites
matty.vrt 120 Posted May 28, 2016 Author Report Share Posted May 28, 2016 1 hour ago, ssaunders said: Thanks for the gratuitous engine porn! what you doing gearbox wise? I have read the 32 box can be a little weak when running big power. good luck steve You are correct, the R32 gearbox casing is a weak point at least on the mk4 anyway. I'm planning on using a DRP out of an early 2.8 4 motion as out of all the 02M's it has the strongest casing. For now I will just add more casing support and a LSD, but in the future when I turn it up I will be looking to a dog gear kit from Don Octane/ Monster Performance; those guys are putting down over 1200bhp using an 02M with dog gears. I did at first plan on covering it to 06A MQ500 like used in the TTRS & Tiguan as some people are running up to 1100nm on standard gearboxes, but as my car has progressed I have come to the conclusion that using it daily is not realistic and so full dog box with sequential shifter it is. Link to post Share on other sites
